AUDIO SPECIFICATIONS
Number of Channels
2
Fixed Output Level
2.0Vrms Unbalanced
4.0Vrms Balanced
Variable Output Level
0 - 8.0Vrms Unbalanced
0 - 16.0Vrms Balanced
Output Impedance
600 ohms Unbalanced and Balanced
Frequency Response
4Hz to 40kHz, +0.5, -2dB (SACD)
4Hz to 20kHz, ±0.5dB (CD)
4Hz to 40kHz, +0.5, -2dB (Data)
Signal To Noise Ratio
Better than 110dB (A-weighted)
Dynamic Range
Better than 100dB
Total Harmonic Distortion
0.002% @ 1000Hz (SACD)
0.002% @ 1000Hz (CD)
0.002% @ 1000Hz (Data)
Channel Separation
Better than 98dB (1,000Hz)
Headphone Output Impedance
47 ohms
DIGITAL AUDIO SPECIFICATIONS
Digital-to-Analog Converter (DAC) Type
Premium 8-channel, 32-bit PCM/DSD, Quad Balanced
Coaxial Sample Rate
16, 24-bit/96kHz
Optical Sample Rate
16, 24-bit/192kHz
USB Sample Rate
16, 24-bit/192kHz
Digital Coaxial Input
0.5V p-p/75 ohms
Digital Optical Input
-15dbm to -21dbm
Digital Output Sample Rate
Up to 24-bit/192kHz
Digital Optical Output
-15dbm to -21dbm
Digital Coaxial Output
0.5V p-p/75 ohms
Digital Output Jitter
N/A
Digital XLR Output
N/A
Digital MCT Output
N/A

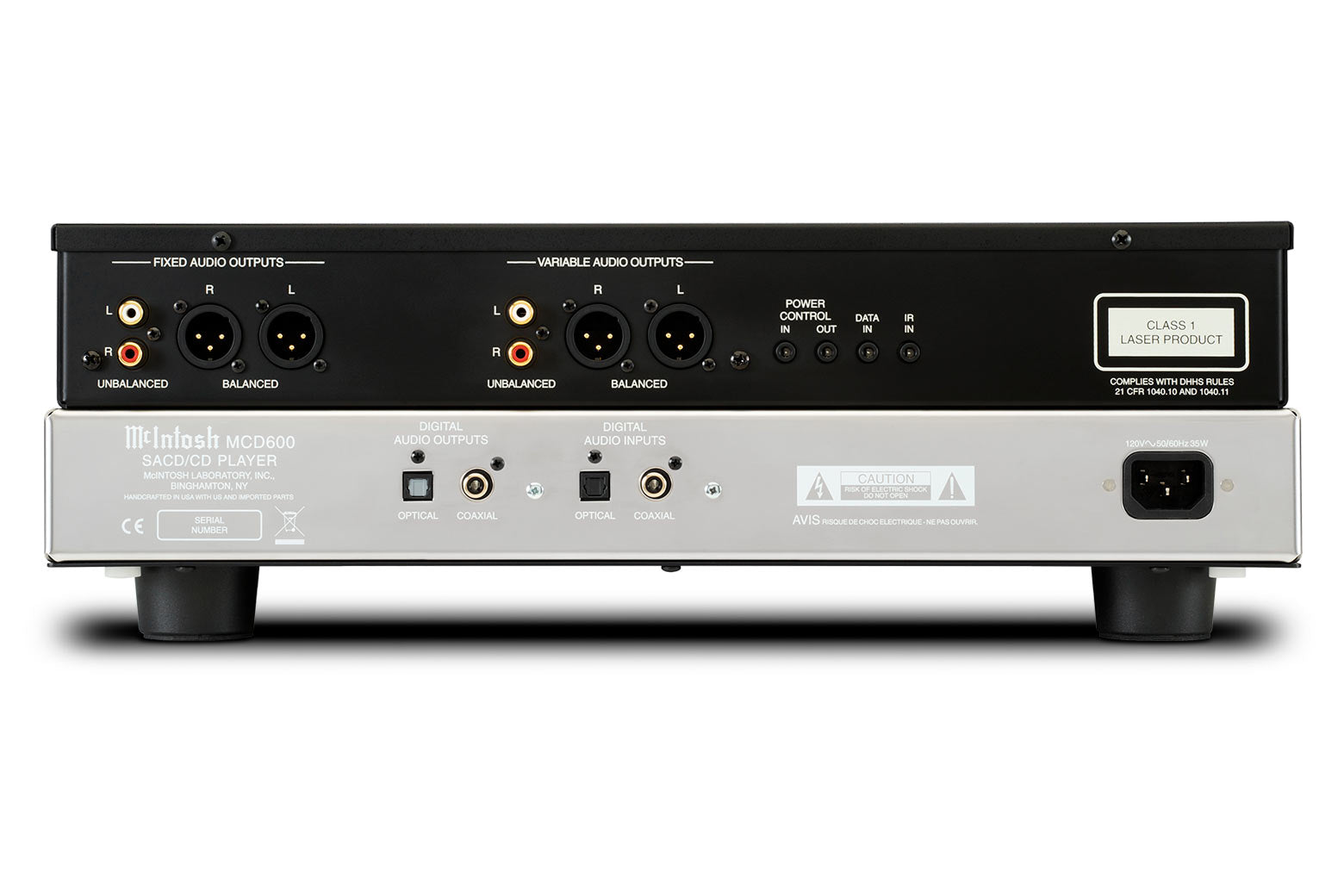

CONNECTIVITY
Balanced Fixed Output
1
Unbalanced Fixed Output
1
Balanced Variable Output
1
Unbalanced Variable Output
1
Digital Coaxial Input
1
Digital MCT Input
0
Digital Optical Input
1
Digital USB Input
1 (front)
Digital USB Input Type
Type A
Digital Coaxial Output
1
Digital MCT Output
0
Digital Optical Output
1
Digital XLR Output
0
Headphone Output
1/4" High Drive
CONTROL
Power Control Input
1
Power Control Output
1
Rear Panel Data Input
1
Rear Panel IR Sensor Input
1
RS232 Control Input
0
GENERAL SPECIFICATIONS
Disc Formats
SACD, CD, CD-R/RW and DVD-R; popular file formats such as AAC, AIFF, ALAC, DSD (up to DSD128), FLAC, MP3, WAV (up to 24-bit/192kHz) and WMA
Disc Capacity
1
Laser Type
Twin Beam
Laser Beam Wavelength
650nm (SACD)
790nm (CD)
Laser Power
CLASS IIa/CLASS I
Standby Power Requirement
<0.5 watt
