Frequency Response
48–25,000 Hz ± 3 dB
Tweeter Dispersion (horizontal x vertical)
80° x 52-inch line source
Sensitivity
95 dB @ 2.83 volts/ meter
Impedance
4 ohms. Compatible with
4, 6, or 8 ohm rated amps.
High Frequency Driver
Sixteen 1.25 x 2.4 inch
(3.2 x 6.1 cm) Folded Motion XT
Obsidian transducer with
4.5 x 2.75 inch
(11.4 x 7 cm) diaphragm.
Crossover Frequency
300, 2700 Hz

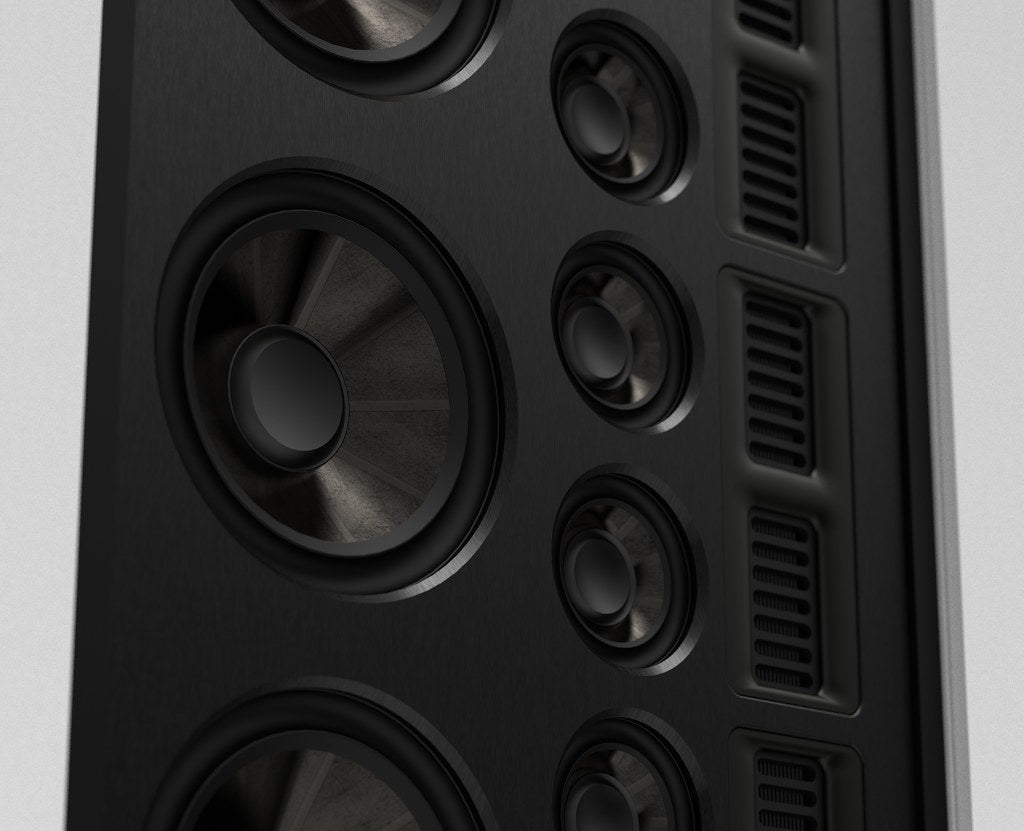

Mid-Frequency Drivers
Sixteen 3.5-inch (8.9 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.
Low Frequency Driver
Eight 6.5-inch (16.5 cm) black
unidirectional carbon fiber
multi-section cone with Nomex®
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.
Components
Custom air core coil inductors,
polypropylene film capacitors, and
low DF electrolytic capacitors.
Suitable Amplifier Range
50–800 watts
Max Power Handling
400 watts
Binding Post Inputs
Push style (two sets for
easy installation)
Weight
150 lb (68.1 kg)

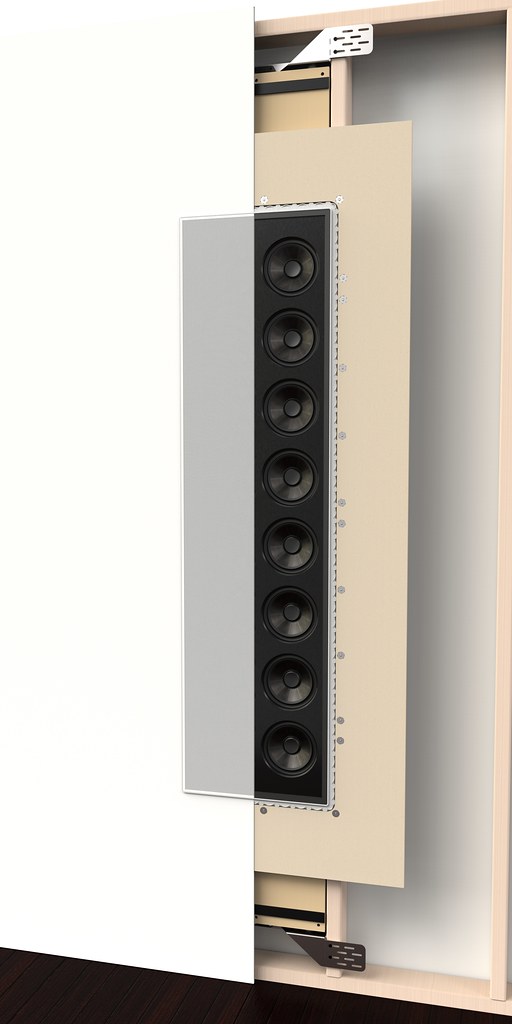

Required Wall Cavity (width)
Minimum: 14.5 inch (368 mm)
Maximum: 16.5 inch (420 mm)
Required Wall Cavity (height, unobstructed)
Minimum: 89 inch (2260 mm)
Required Wall Cavity (depth)
Minimum: 3.5 inch (89 mm)
Enclosure (width x height x depth, excludes padding)
14.3 x 84.2 x 3.4 inch
(361 x 2137 x 86 mm)
Grille (height x width)
11.5 x 59.5 inch (292 x 1511 mm)
Installation Kit (included)
Choose appropriate size
1/2-inch drywall (PN: 40XWIWK05)
5/8-inch drywall (PN: 40XWIWK0625)
