Pristine, stereo audio circuit pathways used throughout
Intuitive interface with LCD display provides detailed control of on-board settings and functions
On-board, 2-way active crossover (12/24 dB per octave), capable of supporting a stereo system with a low-pass filtered subwoofer output and high-pass filtered line outputs to feed the main speakers’ amplifier
Built-in, optimized equalizer curves for use with JL Audio subwoofer systems
Fixed or variable level control options
Selectable polarity control (0 or 180 degrees) to optimize subwoofer integration
Programmable delay controls for the SA-600W’s subwoofer outputs and line outputs.
E.L.F. (Extreme Low Frequency) trim applies equalizer cut or boost at 25 Hz (-12 to + 3 dB) to tailor a subwoofer’s response for a particular room.

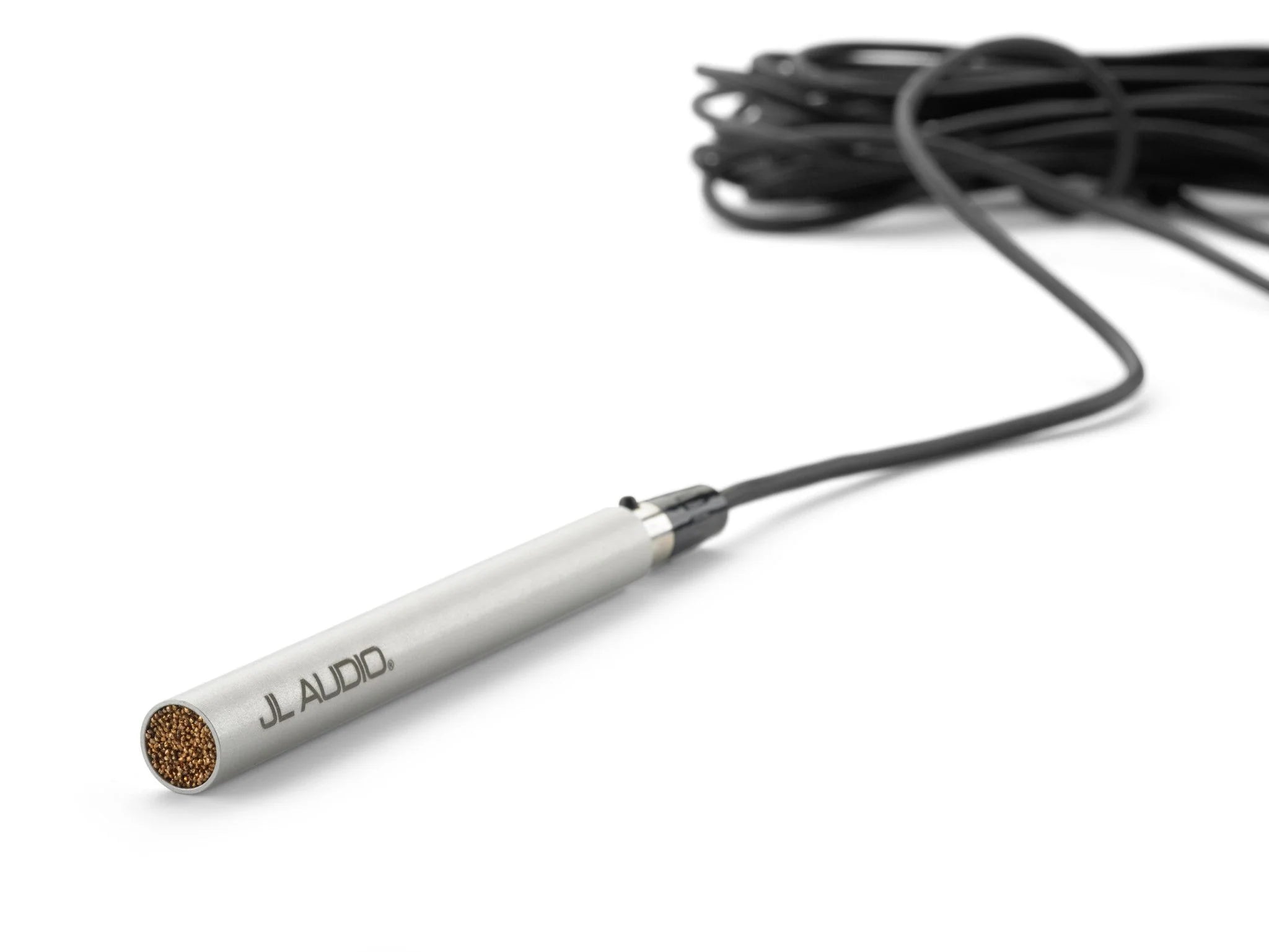

D.A.R.O. (Digital Automatic Room Optimization) automatically measures and corrects in-room response to optimize low-frequency performance (requires optional JL Audio calibration microphone – CAL-MIC1 – sold separately)
Three-band parametric equalizer with configurable center frequency, Q, and gain, to further optimize subwoofer system response
Grounded or Isolated input mode options for quiet, noise-free performance
Stereo, high-level inputs accept direct connection from amplified receiver outputs when no line-level signal is available.
Wireless signal connectivity is available via the optional JLink™ Transmitter/Receiver system (JLink™ TRX – sold separately).
Automatic turn-on options via signal sensing or 12V trigger. 12V input and output triggers to control additional SA-600Ws or peripheral equipment
Front-mounted USB port and DFU button provide easy access to update firmware.
Versatile mounting options for tabletop setups or rack-mount installations.
